SYIL + Siemens
The SYIL X9 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.
%20(1).png?width=5760&name=Mask%20group%20(22)%20(1).png)
%20(1).png?width=5760&name=Mask%20group%20(24)%20(1).png)

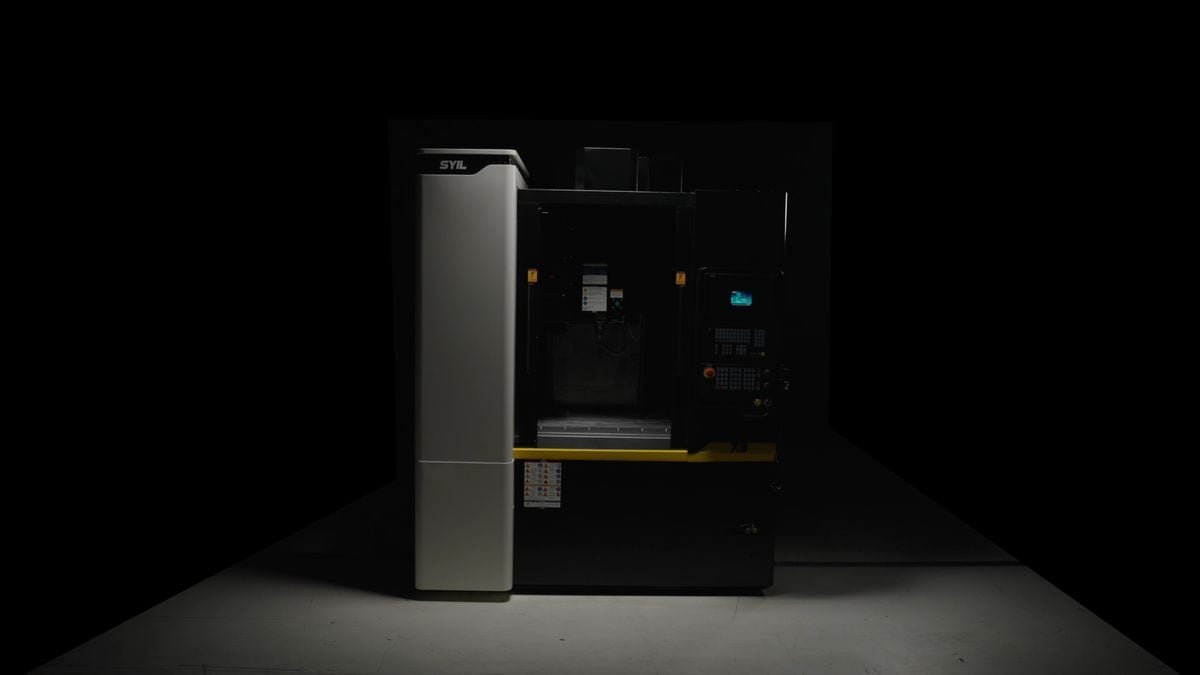

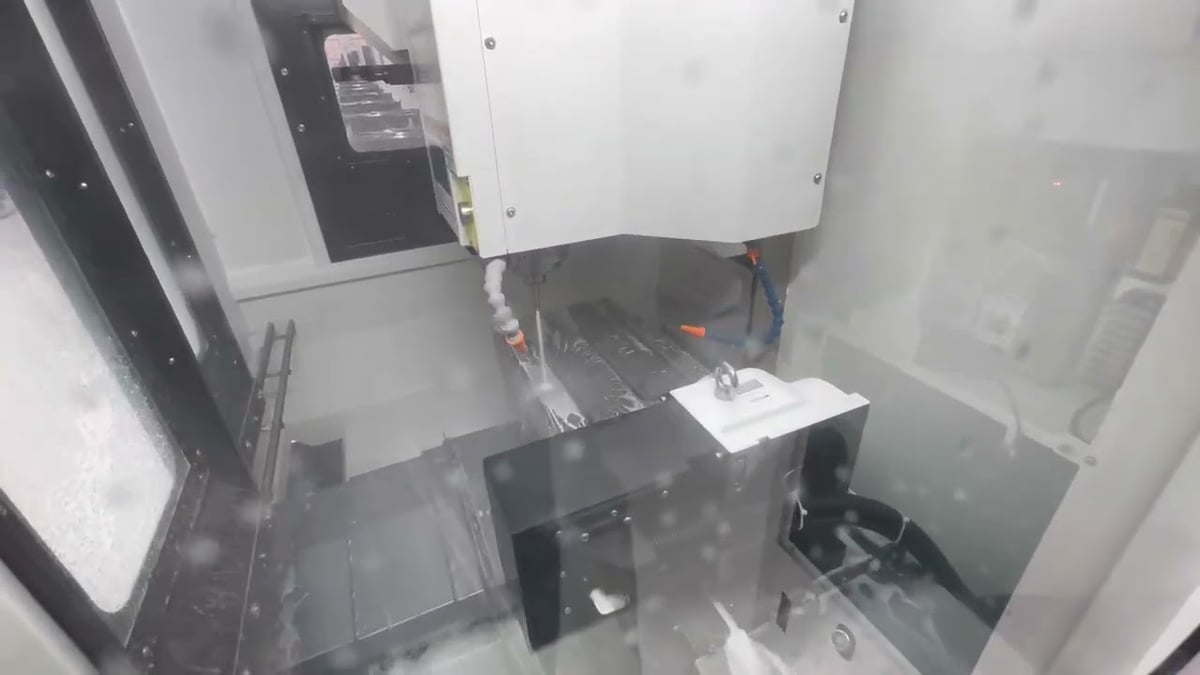

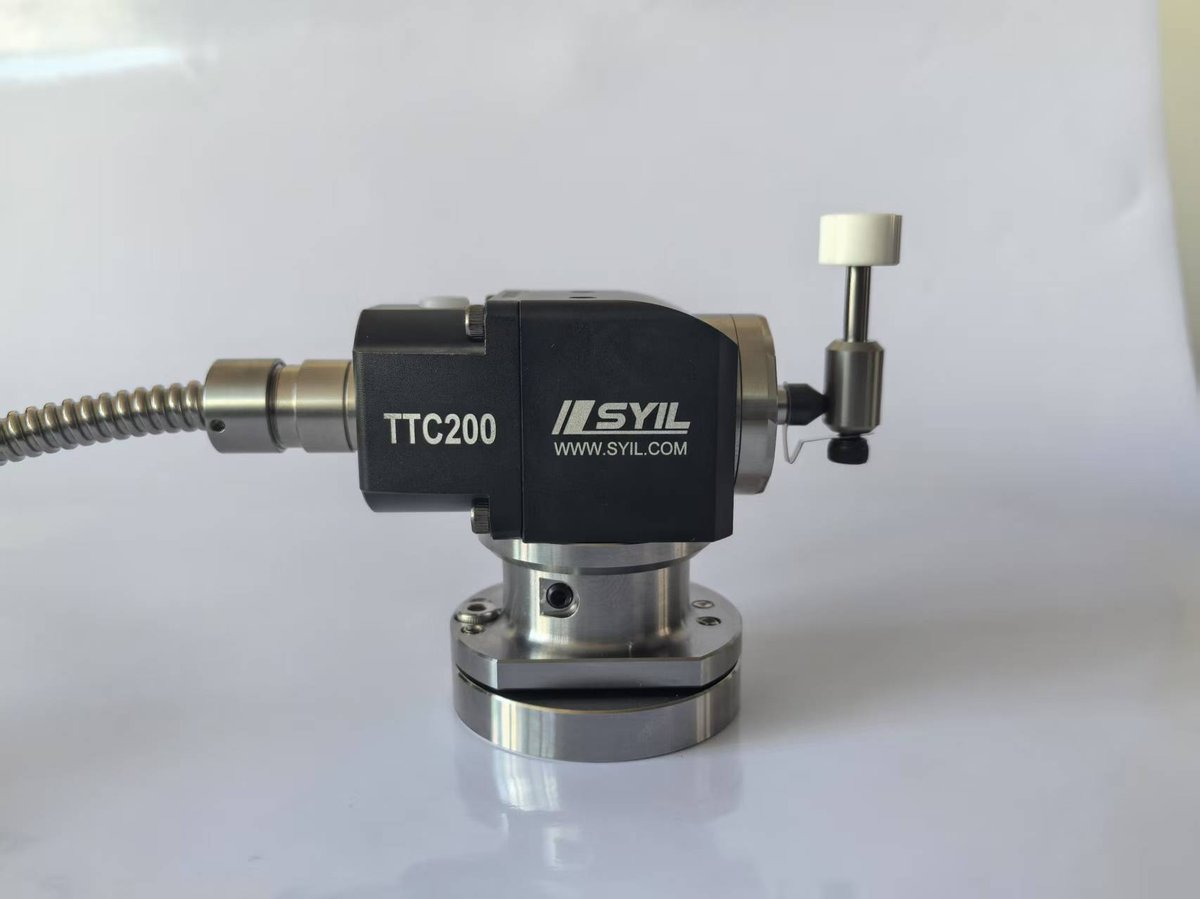

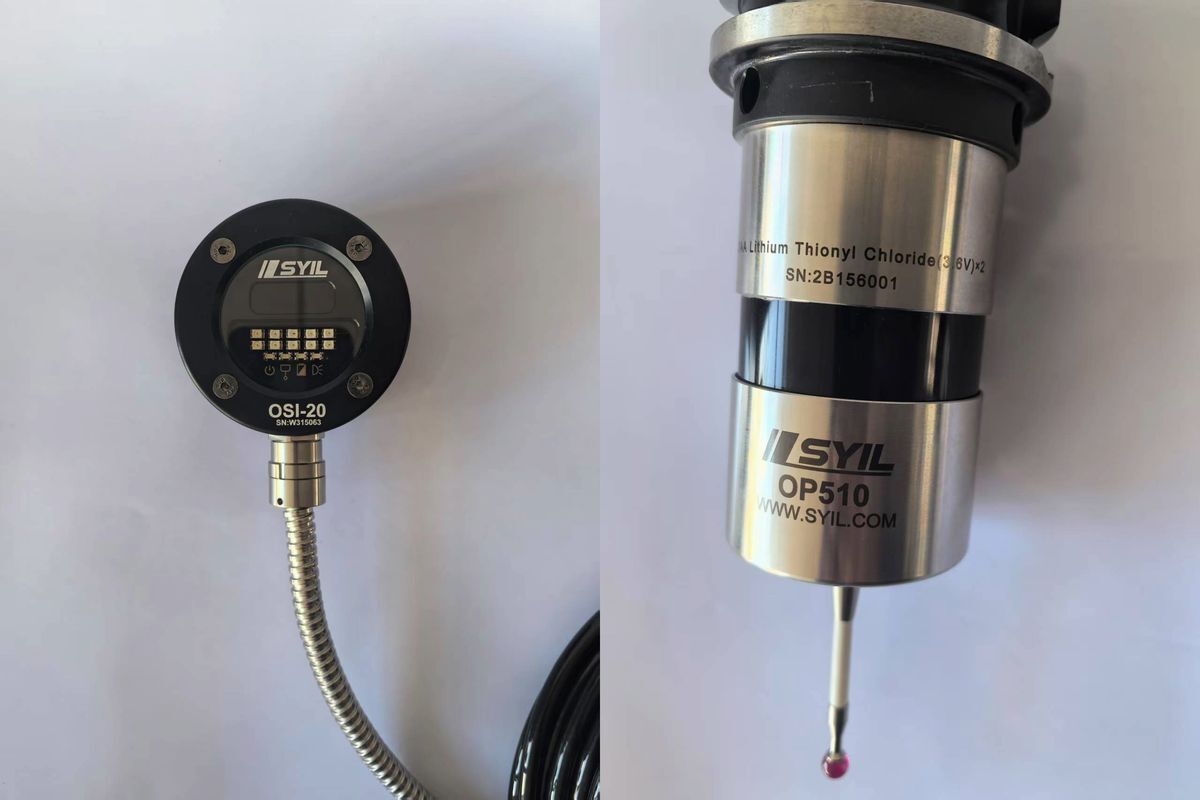

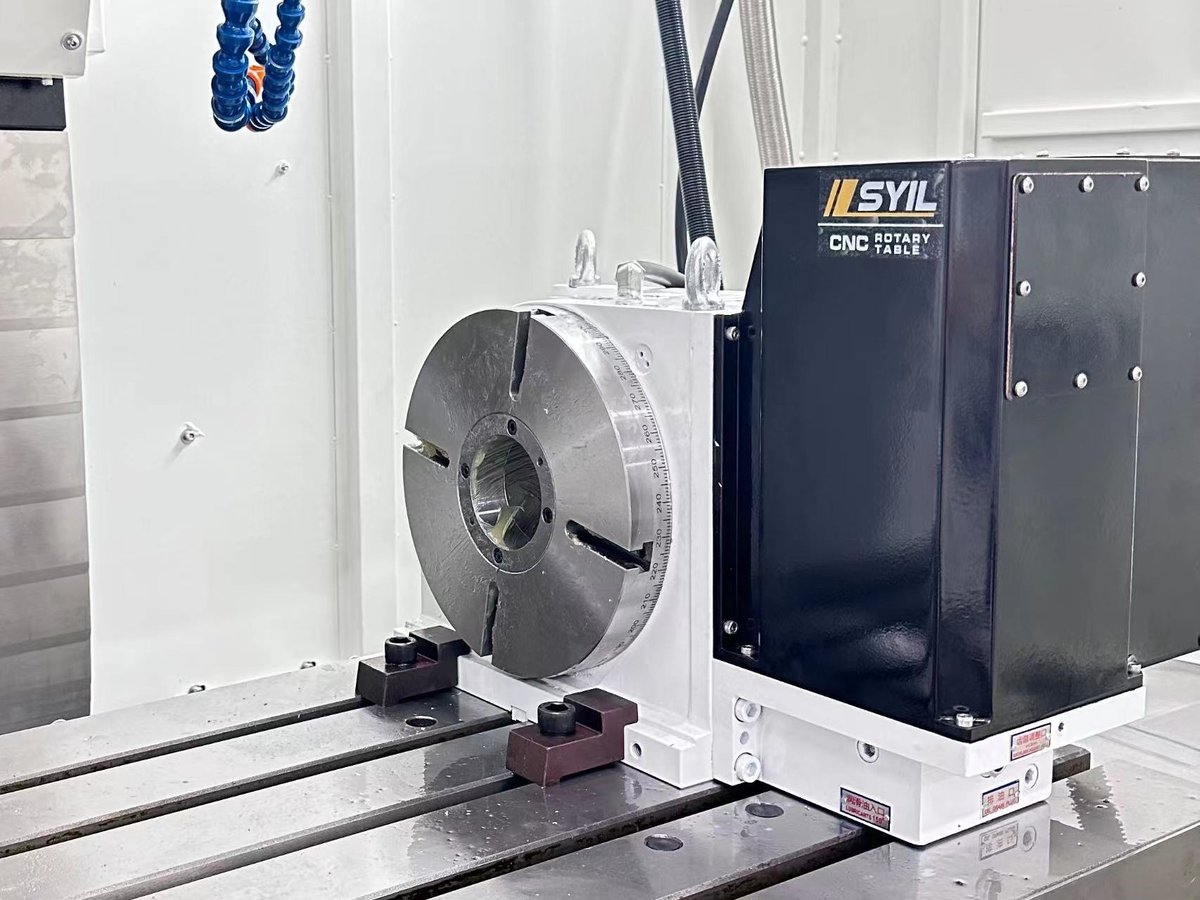

X9 Vertical Milling Machine
Excellent Machining Capabilities. Handling a Full Range of Operations.
SYIL X9 Technical Specifications
X5
X7
X9
X11

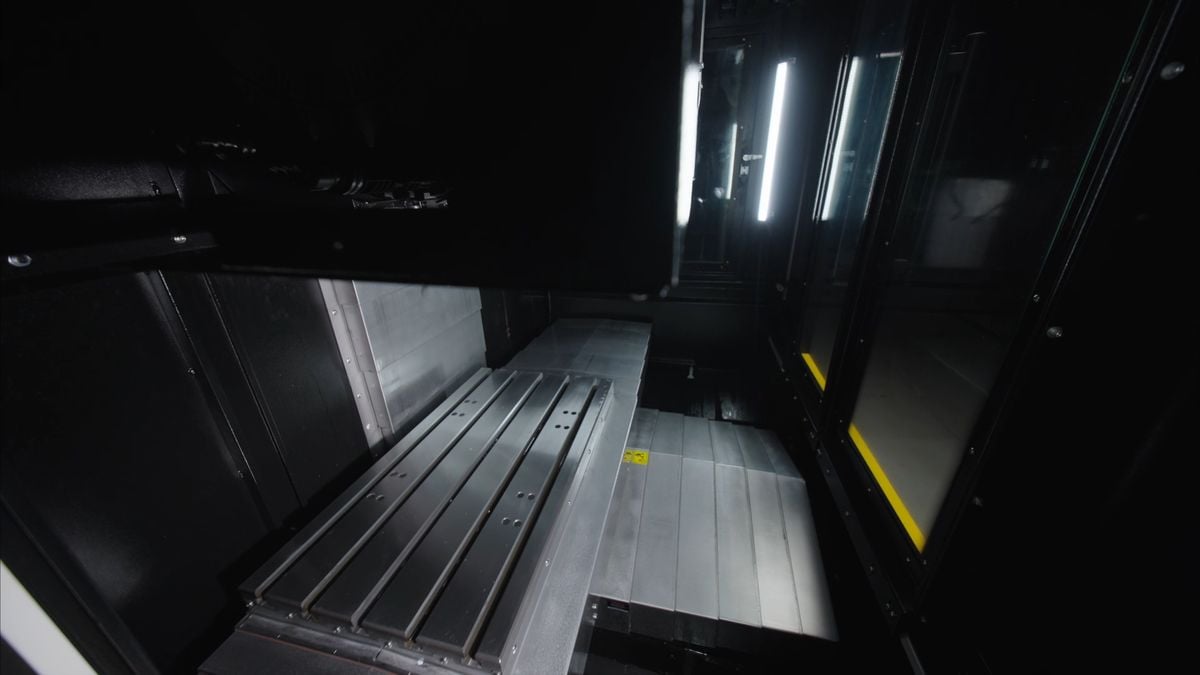

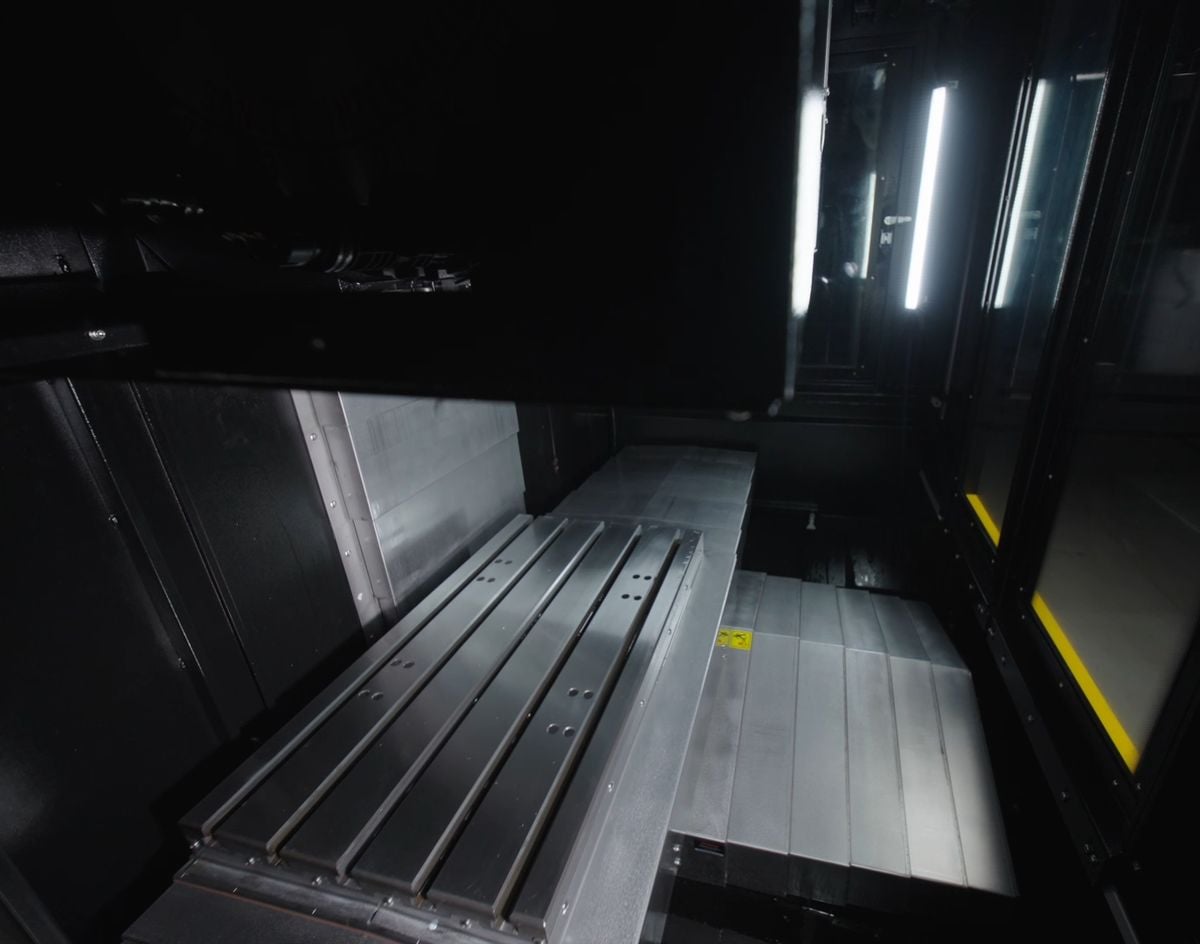

Table
Table size
560×260 mm
700×300 mm
--
1050×550 mm
Working surface
--
--
860x500 mm
--
T-Slots (Number x Size x Distance)
3×14×80 mm
3×14×100 mm
18×5×100 mm
18x5x90 mm
Table load
150 kg
150 kg
500 kg
600 kg

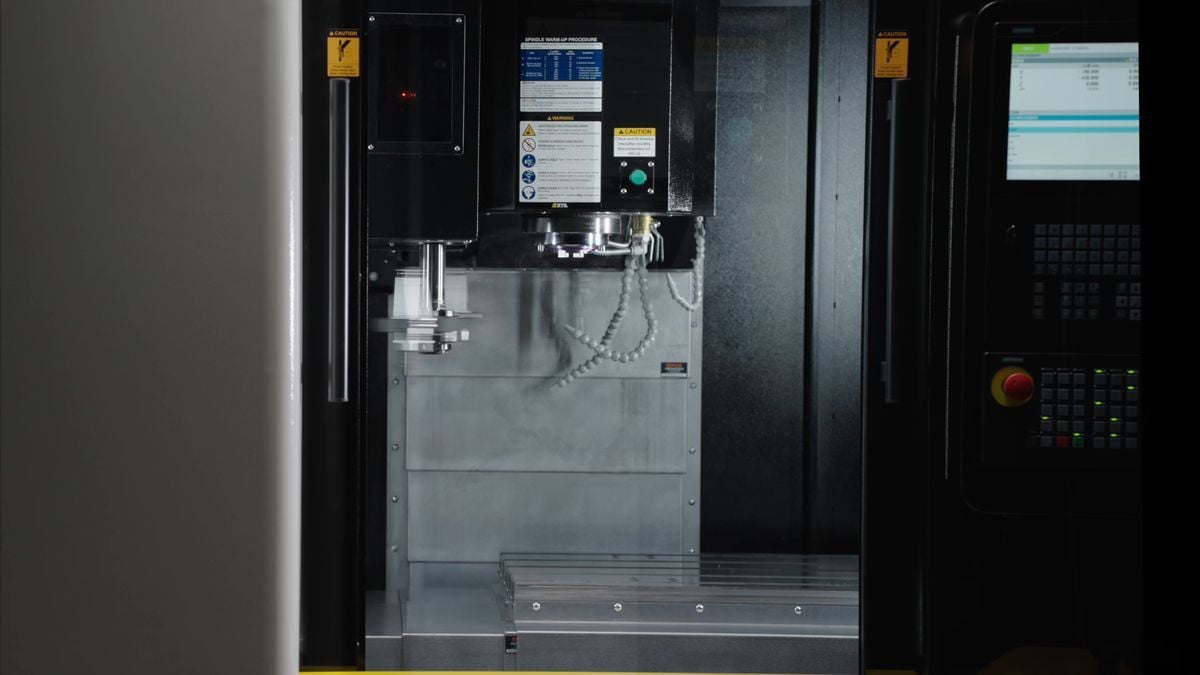

Travel
X Travel
300 mm
400 mm
760 mm
1000 mm
Y Travel
260 mm
300 mm
500 mm
500 mm
Z Travel
300 mm
380 mm
500 mm
500 mm
Distance between spindle end and tabletop
150-450 mm
150-530 mm
100-600 mm
110-610 mm
Distance between spindle and column surface
330 mm
358 mm
530 mm
650 mm

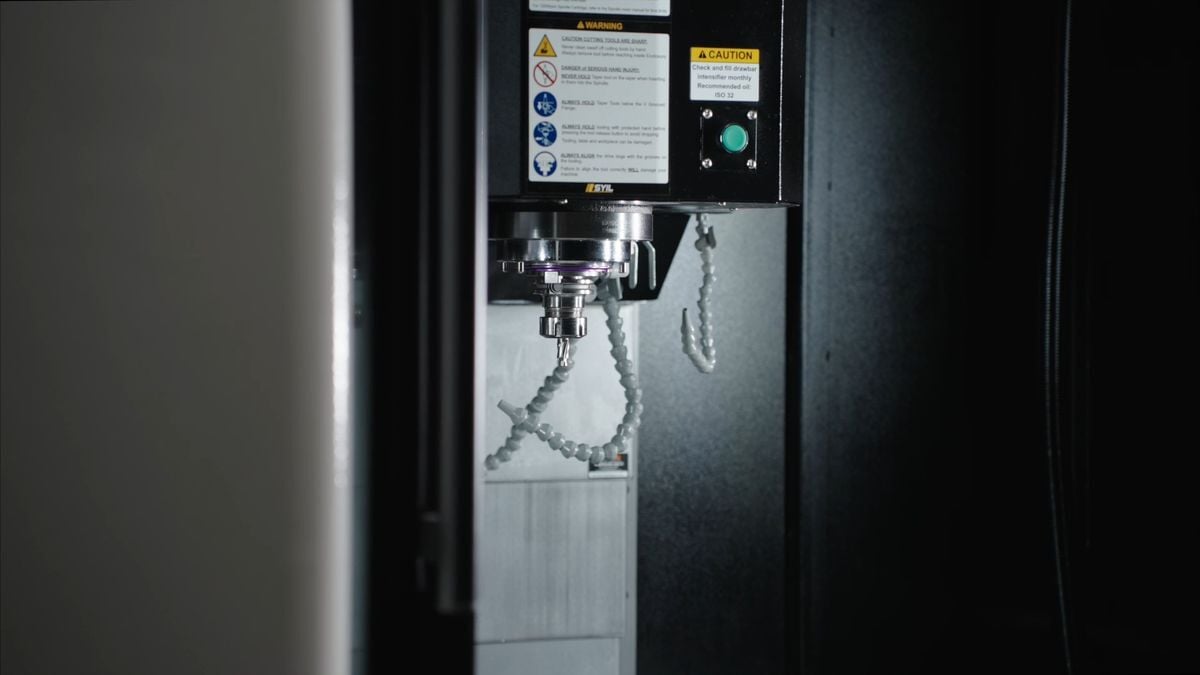

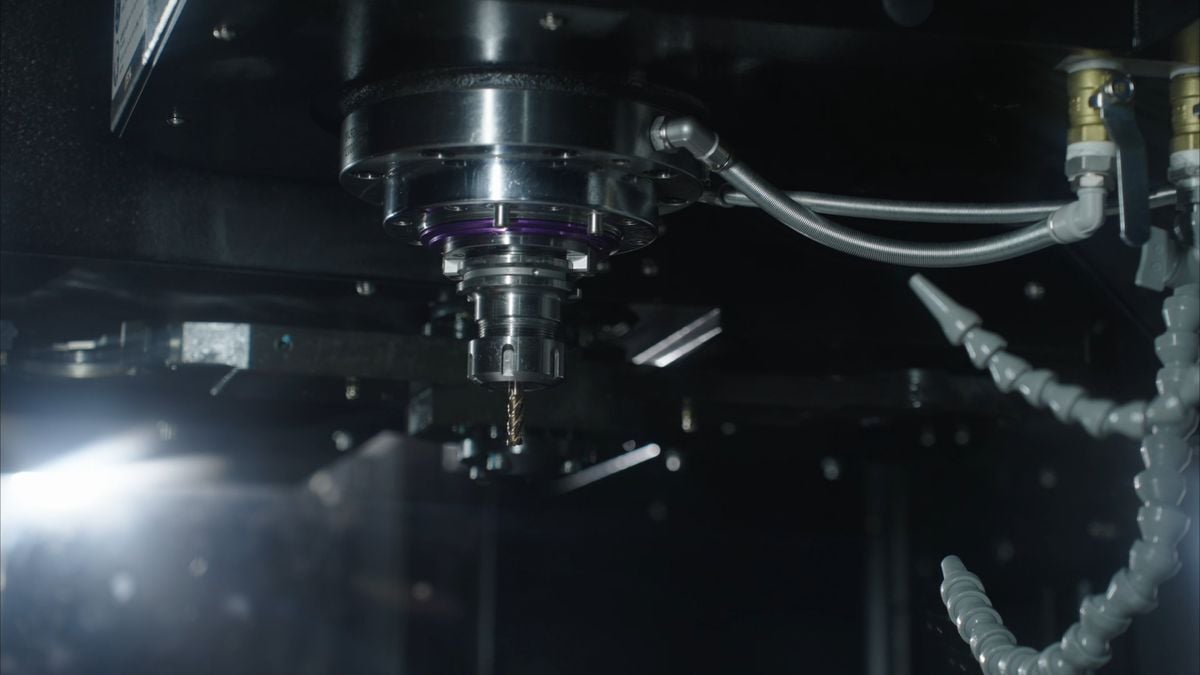

Spindle
Spindle nose
BT30
BT30
BT40
BT40
Max. spindle speed
20,000 rpm
12,000 rpm
12,000 rpm
12,000 rpm/10,000 rpm
Mechanism of Transmission
Direct
Belt
Belt Type/Direct type/
Direct/Belt

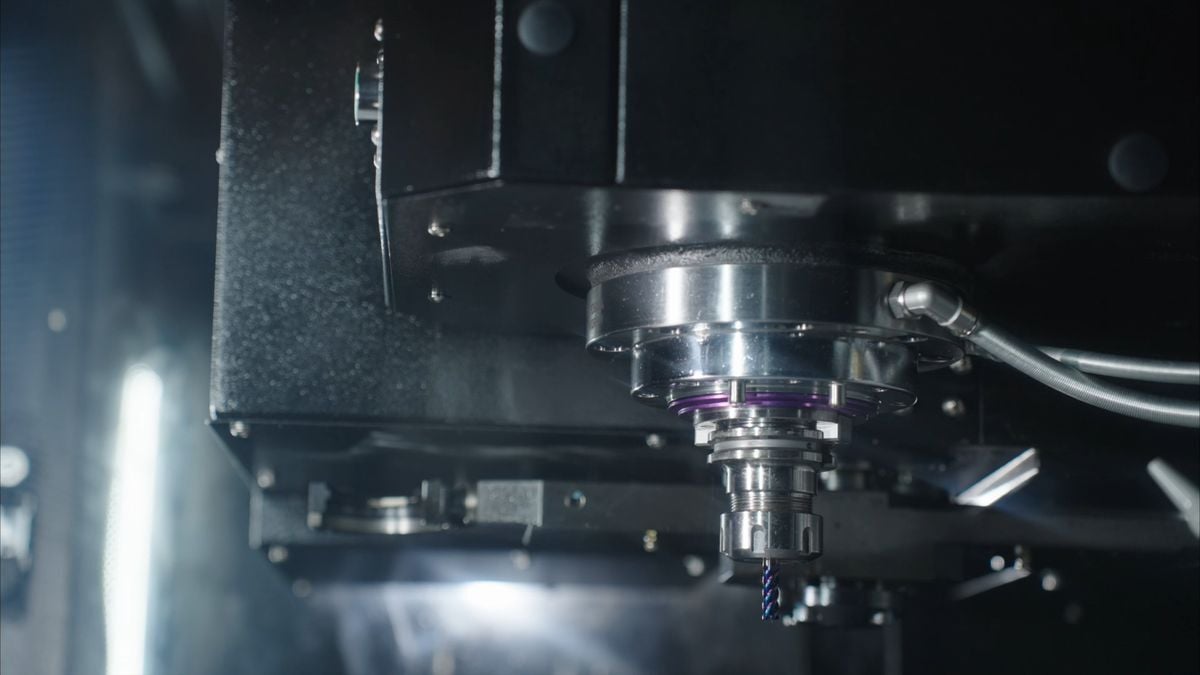

Feed
Cutting Feed
10,000 mm/min
10,000 mm/min
10,000 mm/min
10,000 mm/min
Rapid Traverse
30,000 mm/min
30,000 mm/min
30,000 mm/min
30,000 mm/min
Auto Tool Changer
Tool Type
Wheel Type
Umbrella Type
Arm type
Arm Type

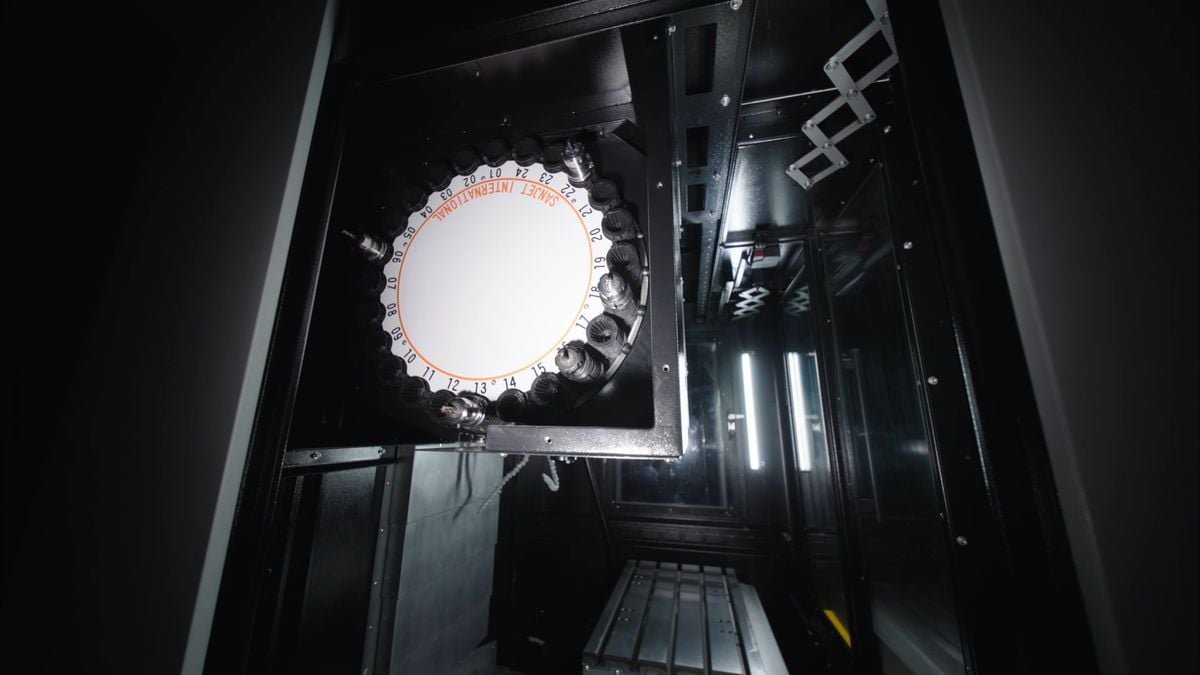

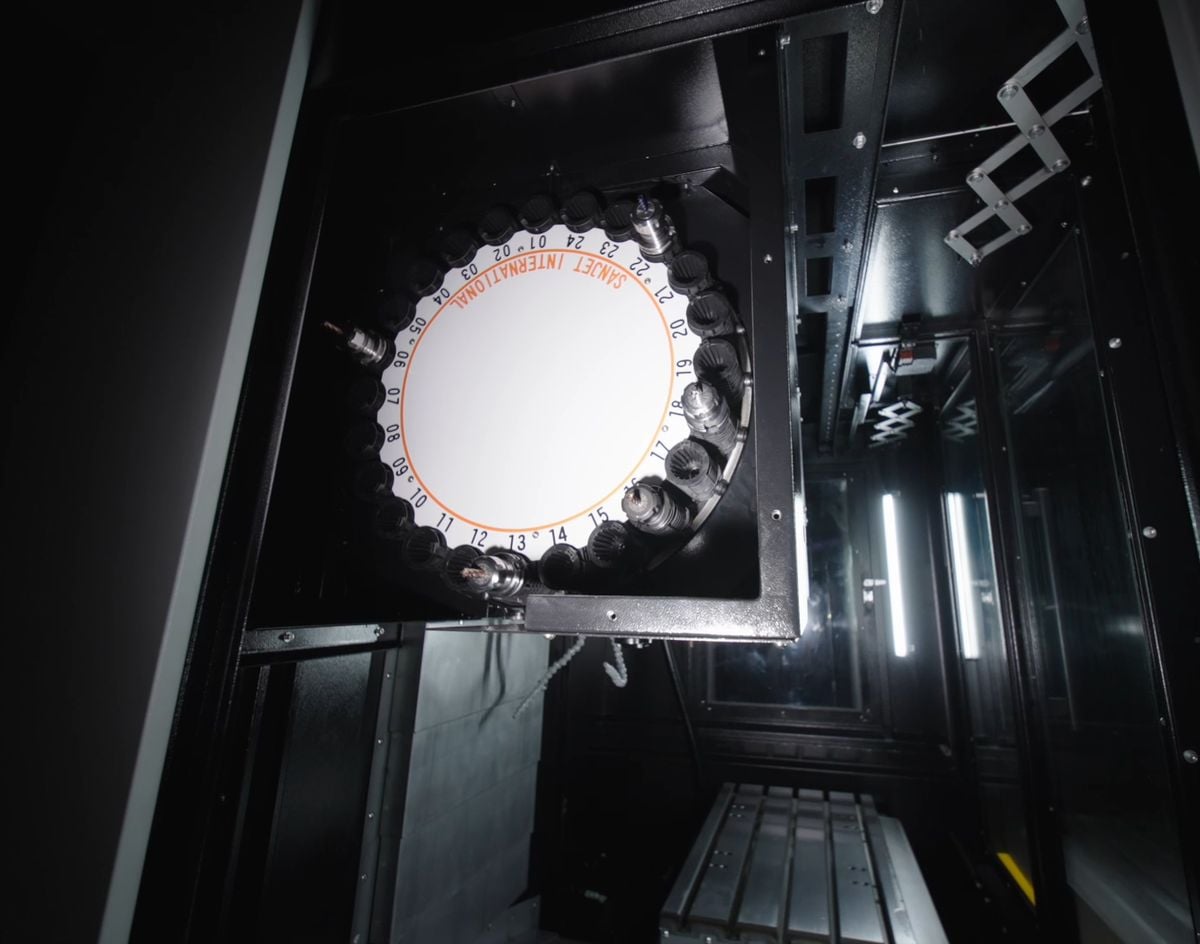

Tool storage capacity
16 pcs
12 pcs
24 pcs
24 pcs
Max. tool diameter
63 mm
63 mm
125 mm
120 mm
Max. tool length
200 mm
200 mm
240 mm
300 mm
Max. tool weight
3 kg
3 kg
7 kg
7 kg
Tool to tool
1 s
1.5 s
2.0 s
2.5 s
Power Siemens
Spindle motor output(Rate/Max)
4.8 kW
7.5/11 kW
--
11/17 kW
Drive motors(X,Y,Z)
1/2.2/3.5 kW
1.1/2.2/2.2 kW
--
3.9/3.9/5.9 kW
Power Source
AC380V/ 3-Phase
AC380V/ 3-Phase
--
AC380V/ 3-Phase
Power
12 kVA
14 kVA
--
--
FANUC
Spindle motor output(Rate/Max)
3.7/5.5 KW
--
--
--
Drive motors (X,Y,Z)
1/2.5/2.7 KW
--
--
--
Power source
AC220V/ 3-Phase
--
--
--
Power
12 kVA
--
--
--
Machine Size and Weight
Floor size (L×W×H)
2020×1000×2360 mm
1800×1600×2250mm
--
2700×2300×2800 mm
Weight kg
2180kg
2200kg
--
7000kg
General
Floor space (L×W×H)
--
--
1850X2245x2800 mm
--
Weight
--
--
6000kg
--
